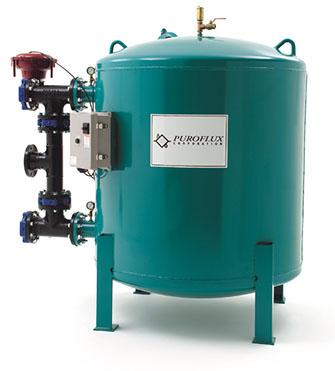

PF-40 Series

DESIGNED FOR LARGER PROCESS & INDUSTRIAL PROCESS - 50 PSI

Details

  • Available in flow rates from 65 to 1,000 GPM.
  • Positive filtration down to 10 micron (5 micron optional).
  • Fusion bonded epoxy lined/polyester coated carbon steel vessel rated at 50 psi .(optional higher pressure ratings and ASME code stamp available).
  • Cast iron lugstyle butterfly valves with aluminum bronze disc.
  • Automatic option includes: NEMA 4X control cabinet, door disconnect switch, pressure differential switch, pneumatic actuator, adjustable solid state timer and 24 hr. backwash clock.
  • Optional pump, pre-strainer, face piping and skid are available.

PF-40 Series DatasheetDOWNLOAD

Operation & Maint. ManualDOWNLOAD

Sample Spec. SheetDOWNLOAD

Select a Model

View product summary

PF-4024
  • Flow Rate: 65 GPM
  • Filtration Area: 3.14 Sq. Ft.
  • Valve Size: 2.0 Inches
  • Dimensions: 48"x62"x34"
  • Weight, lbs: 1100 (shipping) 1610 (operation)
  • * consult factory for voltages not listed:
BACKWASH (Submittal Sheets)
  • TOWER WATER:DOWNLOAD
  • CITY WATER:* Consult Factory
  • Flow Rate: 100 GPM
  • Filtration Area: 4.91 Sq. Ft.
  • Valve Size: 2.0 Inches
  • Dimensions: 54"x64"x38"
  • Weight, lbs: 1850 (shipping) 2700 (operation)
  • * consult factory for voltages not listed:
BACKWASH (Submittal Sheets)
  • TOWER WATER:DOWNLOAD
  • CITY WATER:* Consult Factory
  • Flow Rate: 140 GPM
  • Filtration Area: 7.10 Sq. Ft.
  • Valve Size: 3.0 Inches
  • Dimensions: 60"x66"x44"
  • Weight, lbs: 2245 (shipping) 3740 (operation)
  • * consult factory for voltages not listed:
BACKWASH (Submittal Sheets)
  • TOWER WATER:DOWNLOAD
  • CITY WATER:* Consult Factory
  • Flow Rate: 190 GPM
  • Filtration Area: 9.60 Sq. Ft.
  • Valve Size: 3.0 Inches
  • Dimensions: 70"x80"x48"
  • Weight, lbs: 3925 (shipping) 6290 (operation)
  • * consult factory for voltages not listed:
BACKWASH (Submittal Sheets)
  • TOWER WATER:DOWNLOAD
  • CITY WATER:* Consult Factory
  • Flow Rate: 250 GPM
  • Filtration Area: 12.60Sq. Ft.
  • Valve Size: 4.0 Inches
  • Dimensions: 76"x82"x54"
  • Weight, lbs: 5185 (shipping) 8290 (operation)
  • * consult factory for voltages not listed:
BACKWASH (Submittal Sheets)
  • TOWER WATER:DOWNLOAD
  • CITY WATER:* Consult Factory
  • Flow Rate: 315 GPM
  • Filtration Area: 15.90Sq. Ft.
  • Valve Size: 4.0 Inches
  • Dimensions: 82"x82"x58"
  • Weight, lbs: 6685 (shipping) 10615 (operation)
  • * consult factory for voltages not listed:
BACKWASH (Submittal Sheets)
  • TOWER WATER:DOWNLOAD
  • CITY WATER:* Consult Factory
  • Flow Rate: 390 GPM
  • Filtration Area: 19.60Sq. Ft.
  • Valve Size: 4.0 Inches
  • Dimensions: 88"x84"x64"
  • Weight, lbs: 8400 (shipping) 13500 (operation)
  • * consult factory for voltages not listed:
BACKWASH (Submittal Sheets)
  • TOWER WATER:DOWNLOAD
  • CITY WATER:* Consult Factory
  • Flow Rate: 475 GPM
  • Filtration Area: 23.80Sq. Ft.
  • Valve Size: 4.0 Inches
  • Dimensions: 94"x86"x68"
  • Weight, lbs: 10360 (shipping) 16445 (operation)
  • * consult factory for voltages not listed:
BACKWASH (Submittal Sheets)
  • TOWER WATER:DOWNLOAD
  • CITY WATER:* Consult Factory
  • Flow Rate: 565 GPM
  • Filtration Area: 28.30Sq. Ft.
  • Valve Size: 6.0 Inches
  • Dimensions: 105"x88"x74"
  • Weight, lbs: 13100 (shipping) 20600 (operation)
  • * consult factory for voltages not listed:
BACKWASH (Submittal Sheets)
  • TOWER WATER:DOWNLOAD
  • CITY WATER:* Consult Factory
  • Flow Rate: 665 GPM
  • Filtration Area: 33.20Sq. Ft.
  • Valve Size: 6.0 Inches
  • Dimensions: 108"x90"x80"
  • Weight, lbs: 16030 (shipping) 25280 (operation)
  • * consult factory for voltages not listed:
BACKWASH (Submittal Sheets)
  • TOWER WATER:DOWNLOAD
  • CITY WATER:* Consult Factory
  • Flow Rate: 770 GPM
  • Filtration Area: 38.50Sq. Ft.
  • Valve Size: 6.0 Inches
  • Dimensions: 116"x92"x86"
  • Weight, lbs: 19600 (shipping) 30435 (operation)
  • * consult factory for voltages not listed:
BACKWASH (Submittal Sheets)
  • TOWER WATER:DOWNLOAD
  • CITY WATER:* Consult Factory
  • Flow Rate: 885 GPM
  • Filtration Area: 44.20Sq. Ft.
  • Valve Size: 6.0 Inches
  • Dimensions: 124"x94"x92"
  • Weight, lbs: 22350 (shipping) 35000 (operation)
  • * consult factory for voltages not listed:
BACKWASH (Submittal Sheets)
  • TOWER WATER:* Consult Factory
  • CITY WATER:* Consult Factory
  • Flow Rate: 1000 GPM
  • Filtration Area: 50.30Sq. Ft.
  • Valve Size: 8.0 Inches
  • Dimensions: 132"x100"x98"
  • Weight, lbs: 28975 (shipping) 43585 (operation)
  • * consult factory for voltages not listed:
BACKWASH (Submittal Sheets)
  • TOWER WATER:DOWNLOAD
  • CITY WATER:* Consult Factory

* Dimensions are approximate
Consult factory for higher flow rate packages.
