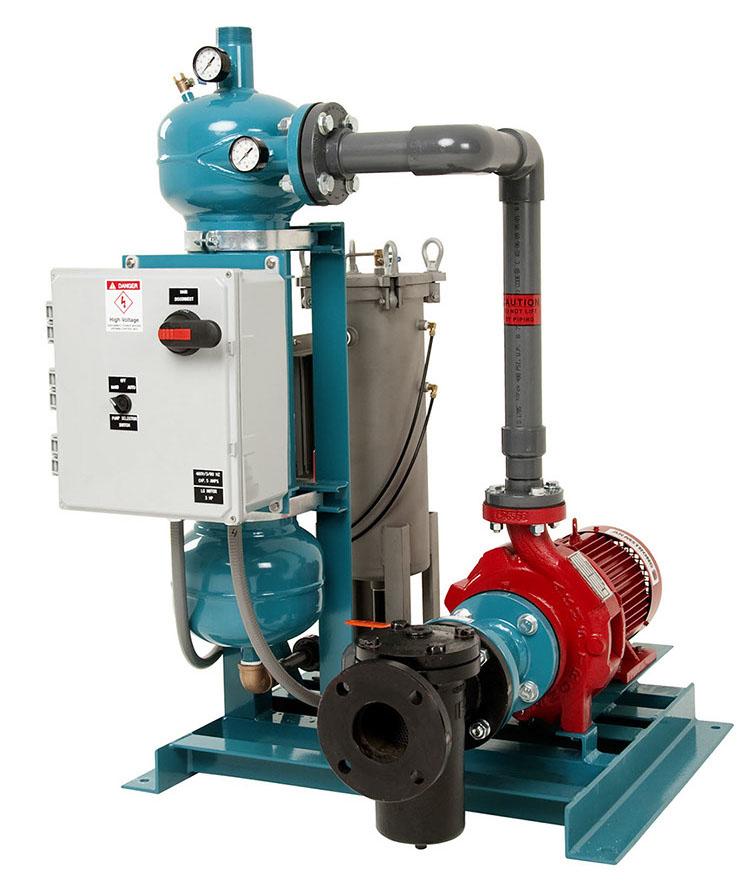

PF-63 Series

PACKAGE RECOVERY SYSTEM 150 PSI

Details

  • Available in flow rates from 50 to 1,200 GPM.
  • Standard unit equipped with PF-61 series separator.
  • Recovery vessel – 304 stainless steel construction, stainless steel support basket, 25 micron bag, swing type eye-bolt cover, pressure differential gauge, manual air relief valve, flow controller and isolation ball valves.
  • Cast iron bronze fitted, close-coupled end suction centrifugal pump with TEFC motor.
  • Cast iron pre-strainer with removable SST basket.
  • Control Panel – UL labeled NEMA 4X cabinet with door disconnect switch, motor short circuit/overload protection and pump HOA switch.
  • Skid – fusion bonded polyester coated carbon steel.
  • Sch. 80 PVC interconnecting piping.
  • Options: Auto purge, dry contact alarm for recovery vessel, removable dome, 22 1/2° profile separator.

PF-63 Series DatasheetDOWNLOAD

Operation & Maint. ManualDOWNLOAD

Sample Spec. SheetDOWNLOAD

Select a Model

View product summary

PF-63-012
  • Flow Rate: 50 GPM
  • Motor: 2 HP
  • Connection: 2" flng (In) 1.25"mpt (Out)
  • Volume: 8 gal.
  • Dimensions: 35"x42"x28"
  • Weight, lbs: 370 (shipping) 438 (operation)
CONFIGURATIONS
  • Standard:DOWNLOAD
  • Dry Contact:* Consult Factory
  • Flow Rate: 80 GPM
  • Motor: 3 HP
  • Connection: 2" flng (In) 1.5"mpt (Out)
  • Volume: 8 gal.
  • Dimensions: 35"x42"x28"
  • Weight, lbs: 372 (shipping) 440 (operation)
CONFIGURATIONS
  • Standard:DOWNLOAD
  • Dry Contact:* Consult Factory
  • Flow Rate: 110 GPM
  • Motor: 5 HP
  • Connection: 3" flng (In) 2"mpt (Out)
  • Volume: 13 gal.
  • Dimensions: 41"x50"x34"
  • Weight, lbs: 530 (shipping) 640 (operation)
CONFIGURATIONS
  • Standard:DOWNLOAD
  • Dry Contact:* Consult Factory
  • Flow Rate: 160 GPM
  • Motor: 5 HP
  • Connection: 3" flng (In) 2.5"mpt (Out)
  • Volume: 14 gal.
  • Dimensions: 41"x50"x34"
  • Weight, lbs: 640 (shipping) 752 (operation)
CONFIGURATIONS
  • Standard:DOWNLOAD
  • Dry Contact:* Consult Factory
  • Flow Rate: 220 GPM
  • Motor: 7.5 HP
  • Connection: 3" flng (In) 3"flng (Out)
  • Volume: 15 gal.
  • Dimensions: 41"x51"x34"
  • Weight, lbs: 689 (shipping) 809 (operation)
CONFIGURATIONS
  • Standard:DOWNLOAD
  • Dry Contact:* Consult Factory
  • Flow Rate: 330 GPM
  • Motor: 10 HP
  • Connection: 4" flng (In) 4" flng (Out)
  • Volume: 26 gal.
  • Dimensions: 56"x63"x36"
  • Weight, lbs: 850 (shipping) 1067 (operation)
CONFIGURATIONS
  • Standard:DOWNLOAD
  • Dry Contact:* Consult Factory
  • Flow Rate: 400 GPM
  • Motor: 10 HP
  • Connection: 4" flng (In) 4" flng (Out)
  • Volume: 26 gal.
  • Dimensions: 56"x63"x36"
  • Weight, lbs: 970 (shipping) 1198 (operation)
CONFIGURATIONS
  • Standard:DOWNLOAD
  • Dry Contact:* Consult Factory
  • Flow Rate: 600 GPM
  • Motor: 15 HP
  • Connection: 6" flng (In) 5" flng (Out)
  • Volume: 36 gal.
  • Dimensions: 61"x75"x42"
  • Weight, lbs: 1350 (shipping) 1822 (operation)
CONFIGURATIONS
  • Standard:DOWNLOAD
  • Dry Contact:* Consult Factory
  • Flow Rate: 900 GPM
  • Motor: 20 HP
  • Connection: 6" flng (In) 6" flng (Out)
  • Volume: 53 gal.
  • Dimensions: 61"x88"x46"
  • Weight, lbs: 1757 (shipping) 2197 (operation)
CONFIGURATIONS
  • Standard:DOWNLOAD
  • Dry Contacts:* Consult Factory
  • Flow Rate: 1200 GPM
  • Motor: 25 HP
  • Connection: 8" flng (In) 6" flng (Out)
  • Volume: 53 gal.
  • Dimensions: 67"x88"x46"
  • Weight, lbs: 1873 (shipping) 2317 (operation)
CONFIGURATIONS
  • Standard:DOWNLOAD
  • Dry Contact:* Consult Factory

* Dimensions are approximate
* Consult factory for voltages not listed
Consult factory for higher flow rate packages
